PBSS-STATIC DISSIPATOR & VERIFIER- Z2059 (with LCD Color Display)

PBSS-STATIC DISSIPATOR & VERIFIER- Z2059 (with LCD Color Display)

13535.0 INR/Number

Get a Price/Quote

Product Details:

Display Type colour LCD display with sound
Warranty 12 months
Material Abs Plastic
Features This is an advanced version of our popular BODY STATIC DISSIPATOR model Z2058. It is designed to safely drain away any electrostatic charge which may be present on a Human body before entering a Static Sensitive or Hazardous area. All operating instructions and TEST result are shown on the Color LCD display. Fix or hang the unit on the wall at any convenient location. Ground the device to a suitable ground point by means of the 2 cords and follow the instructions appearing on the colour LCD display to safely neutralise any static charges which may be present on the body with test results. PASS is with Sound. Added feature of a potential-free relay output for Access control if required. For example, to release door on PASSING.
Rated Current 230
IP Rating IP65
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PBSS-STATIC DISSIPATOR & VERIFIER- Z2059 (with LCD Color Display) Price And Quantity

Price 13535.0 INR/Number
Minimum Order Quantity 1 Number

PBSS-STATIC DISSIPATOR & VERIFIER- Z2059 (with LCD Color Display) Product Specifications

Color White
Product Type esd
Weight 450 Grams (g)
Surface Resistance 10^5 ohms
Warranty 12 months
Display Type colour LCD display with sound
Size Overall 220 x 220 x 80mm
Material Abs Plastic
Detection Method Manual
Features This is an advanced version of our popular BODY STATIC DISSIPATOR model Z2058. It is designed to safely drain away any electrostatic charge which may be present on a Human body before entering a Static Sensitive or Hazardous area. All operating instructions and TEST result are shown on the Color LCD display. Fix or hang the unit on the wall at any convenient location. Ground the device to a suitable ground point by means of the 2 cords and follow the instructions appearing on the colour LCD display to safely neutralise any static charges which may be present on the body with test results. PASS is with Sound. Added feature of a potential-free relay output for Access control if required. For example, to release door on PASSING.
Rated Current 230
IP Rating IP65

PBSS-STATIC DISSIPATOR & VERIFIER- Z2059 (with LCD Color Display) Trade Information

FOB Port N/A
Payment Terms Paypal Cash Against Delivery (CAD) Cash Advance (CA) Cash in Advance (CID) Cheque
Supply Ability 100 Number Per Month
Delivery Time 4 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Bubble Wrapping ,& In Box Packaging
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

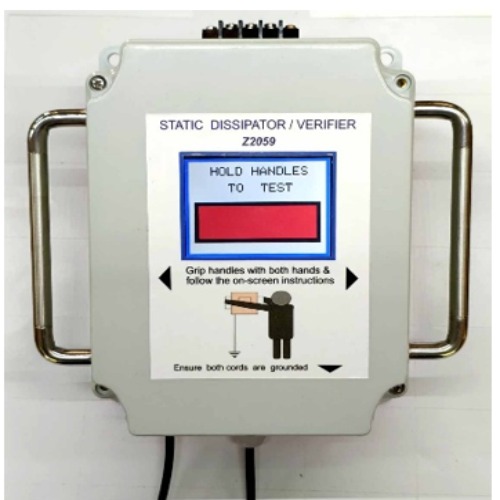

PBSS-STATIC DISSIPATOR & VERIFIER- Z2059 (with LCD Color Display)

This is an advanced version of our popular BODY STATIC DISSIPATOR model Z2058. It is designed to safely drain away any electrostatic charge which may be present on a Human body before entering a Static Sensitive or Hazardous area. All operating instructions and TEST result are shown on the Color LCD display.

Fix or hang the unit on the wall at any convenient location.

Ground the device to a suitable ground point by means of the 2 cords and follow the instructions appearing on the colour LCD display to safely neutralise any static charges which may be present on the body with test results. PASS is with Sound.

Added feature of a potential-free relay output for Access control if required.

For example, to release door on PASSING.

Specifications

Enclosure : ABS plastic

Ingress Protection: IP65

Dimensions : Overall 220 x 220 x 80mm

Weight : 750 gms

Mounting : Wall mounting provision

Test Grips : Test and Reference Stainless Steel handles

Ground cords : 2m long

Power Supply : 230V AC mains

Result : on colour LCD display with sound

Decay Time : < 4 secs

Resistance to Ground: 10^5 ohms for safety

Warranty : 12 months except on display
